What type of fish is in the middle of CaptiveReefs (top left corner of page...hint it is the main character in Finding Nemo) )

going 100% led


Bookmark and Share
Page 1 of 4 1 2 3 ... Last
Results 1 to 10 of 34
  1. #1
    motorcityreefs - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    redford
    Posts
    46
    First Name
    brandon

    Default going 100% led

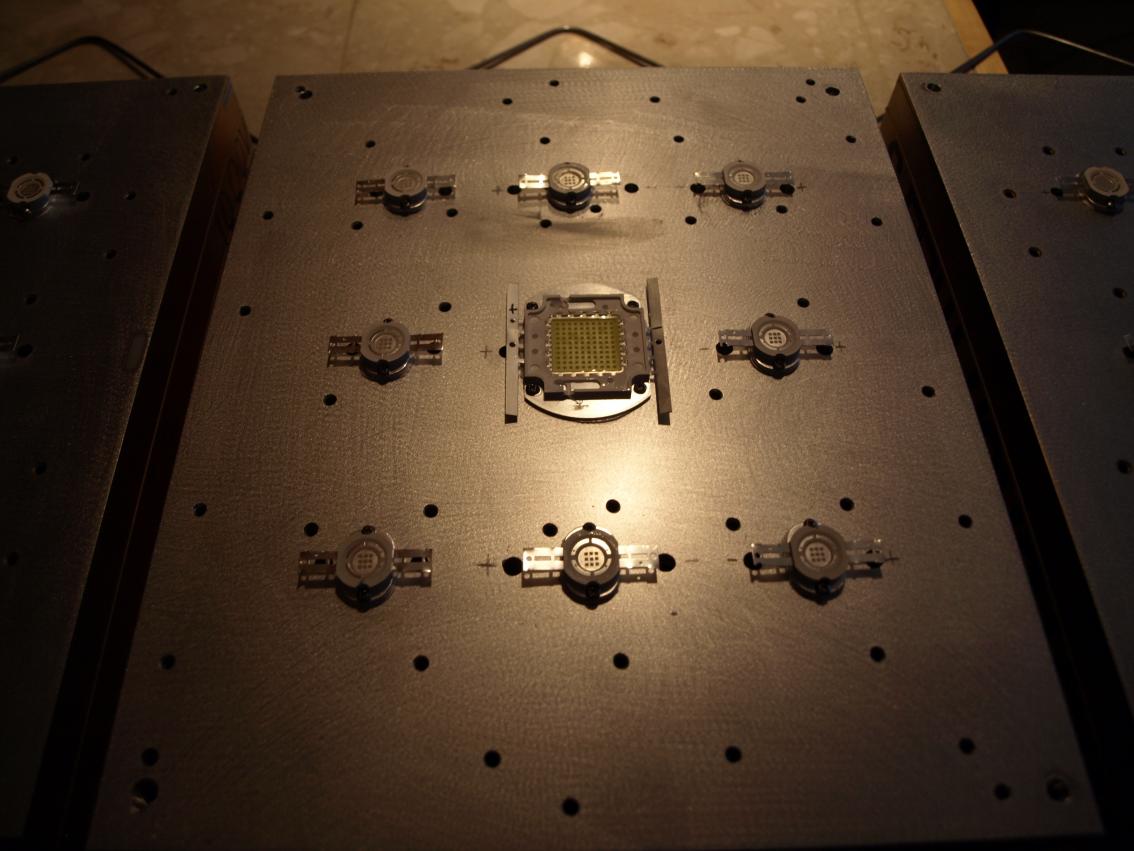

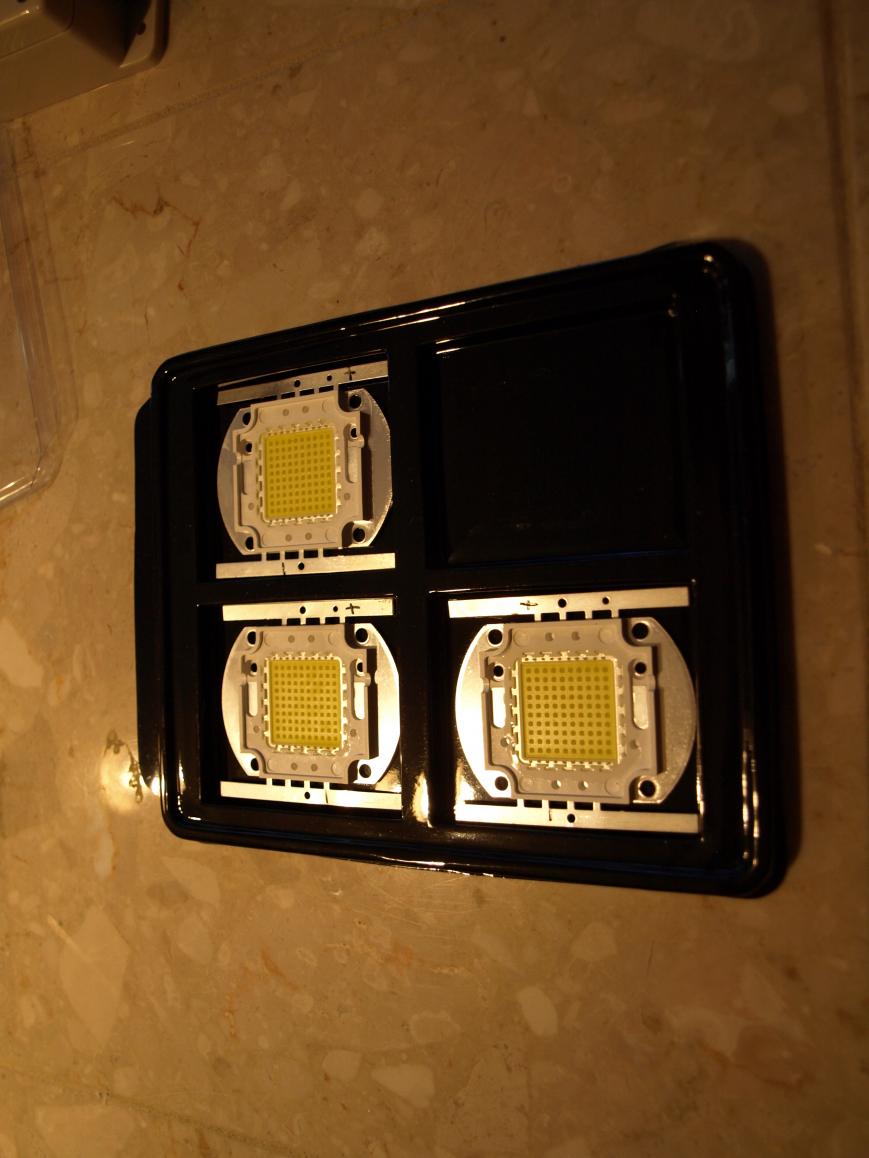

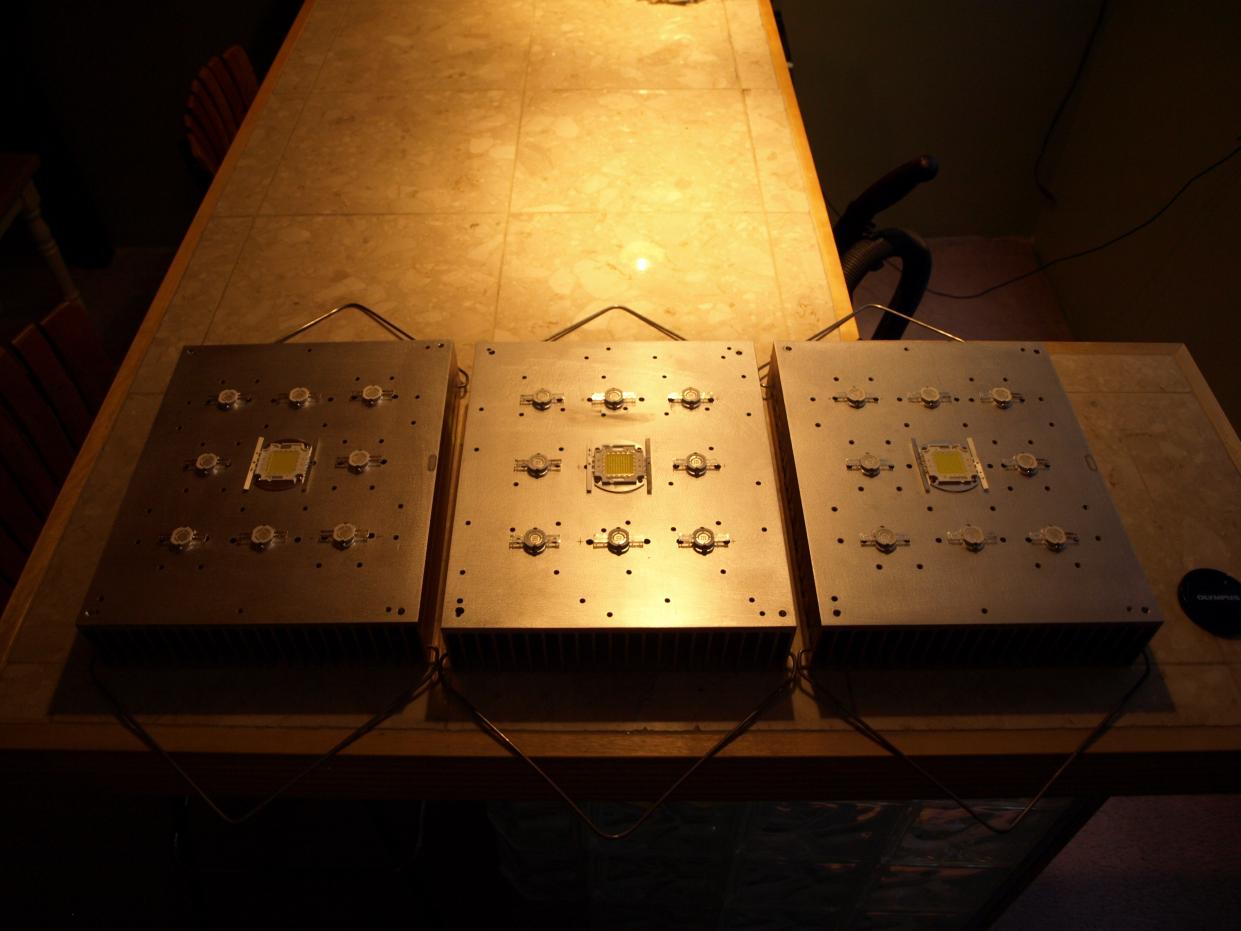

    After hearing about every one going with leds i finaly went and got some my self. I have three 100watt 6700k led chips and 24 10watt blue leds.

  2. #2
    Tom@HaslettMI - Reefkeeper
    Join Date
    Oct 2009
    Location
    East Lansing, MI
    Posts
    1,876
    First Name
    Tom
    Awards Yugo Award - For helping with the CR Booth at MCES Monthly Giveaway Winner Monthly Giveaway Winner Photo of the Month Tank of the Month

    Default

    Sounds cool. Lets see some pics!

    Tom

  3. #3
    Sir Patrick - Reefkeeper A2 Club Coordinator
    Join Date
    Oct 2009
    Location
    UofM territory
    Posts
    7,514
    First Name
    Chris
    Awards Monthly Giveaway Winner

    Default

    Cant wait to see an update!

  4. #4
    Mr. Microscope - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    Evanson, IL
    Posts
    256
    Awards Tank of the Month - August 2012 Tank of the Month

    Default

    That's some serious light. I'm just using the 3 watts and trying not to bleach stuff. How big, deep is your tank? BTW, what's the wavelength on the blues?

  5. #5
    motorcityreefs - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    redford
    Posts
    46
    First Name
    brandon

    Default

    Its a 180gallon and it is 24" deep the blues peak wave length is 467 to 470 (nm). I had bought some lens reflectors/collimators but when i used them the light was to intens so i'm not useing them. I will try to post some pics but i'm haveing some problems posting them. Every time i try to post pics it says your submission could not be processed becouse a security token was missing what ever that is?
    Attached Images Attached Images
    Last edited by motorcityreefs; 03-23-2011 at 02:00 PM.

  6. #6
    Mr. Microscope - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    Evanson, IL
    Posts
    256
    Awards Tank of the Month - August 2012 Tank of the Month

    Default

    Just use photobucket or something like that for uploading images. It's a bit easier.

    That wavelength of blue is what they call Cool Blue or just Blue. It'll give your tank a listerine feel (not what you are going for). The blues you want should be in the 450-460 range. They are called Royal Blue. It's good to use cool blue too, but on a much lower level. Also, at 6500K, your white LEDs are going to have an overlap in the blue part of the spectrum. This will leave you tank looking kind of icey. I perfer the "neutral white' range of of about 4300k. By itself the whites are very yellow. So, you need to balance them out with about twice as many royal blues, but they bring out the warmer colors (reds, yellows, etc.) of your corals much better.

    My setup is very small compared to what you're doing, but I think the ratios are good. My LEDs are 2 Neutral Whites, 4 Royal Blues, and 1 Cool Blue. I have 1000mA drivers on the NW's and RB's, and a 500mA driver on the Cool Blue. They are all at about the same levels and the color is comparable to to crisp 14-20K MH. I also have every channel on dimmers. So, I can dial in whatever color I want. In a larger setup, you could probably get away with less Cool Blue. Perhaps NW:RB:CB = 3:6:1.
    Last edited by Mr. Microscope; 03-23-2011 at 02:09 PM.

  7. #7
    motorcityreefs - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    redford
    Posts
    46
    First Name
    brandon

    Default

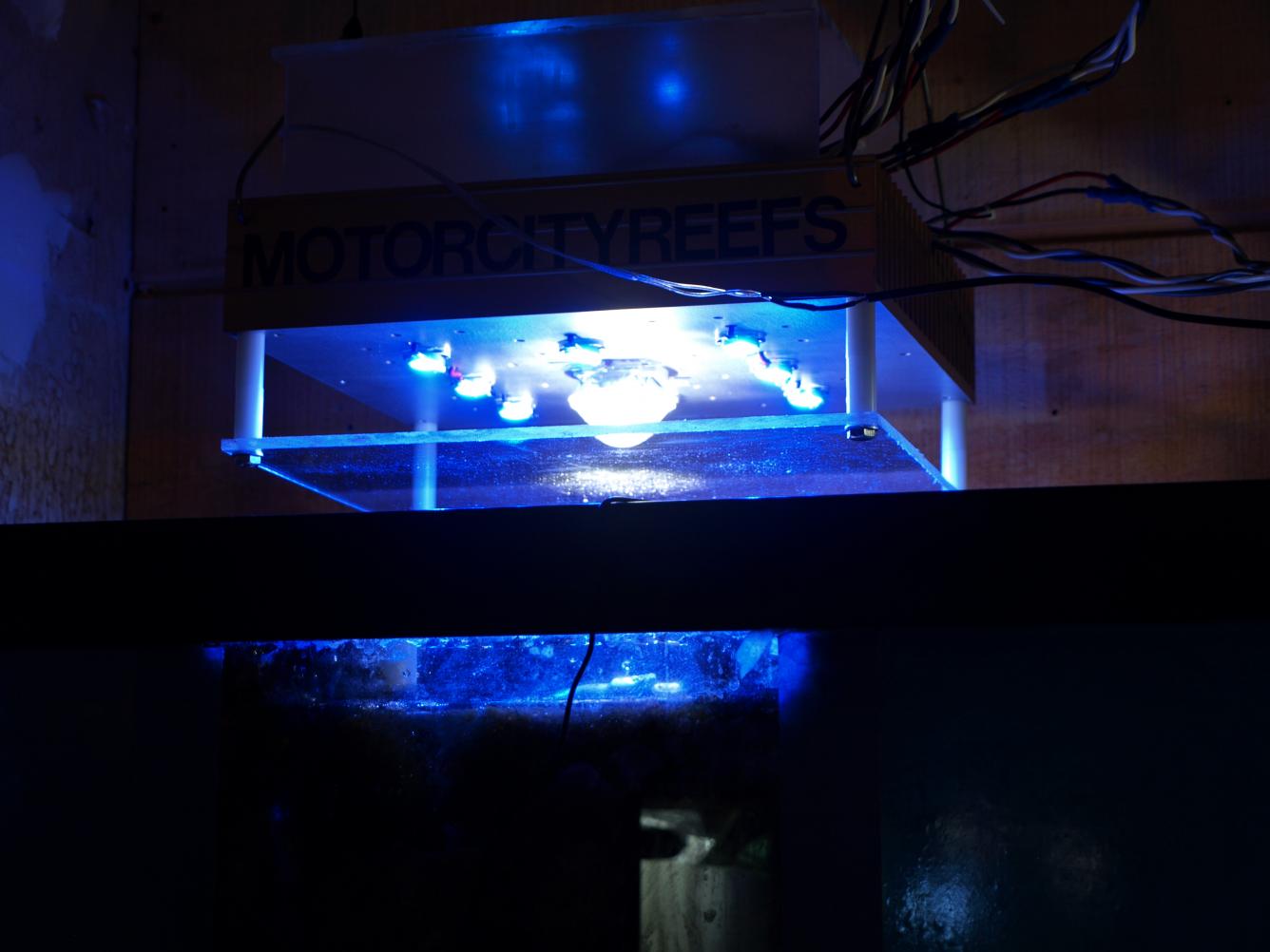

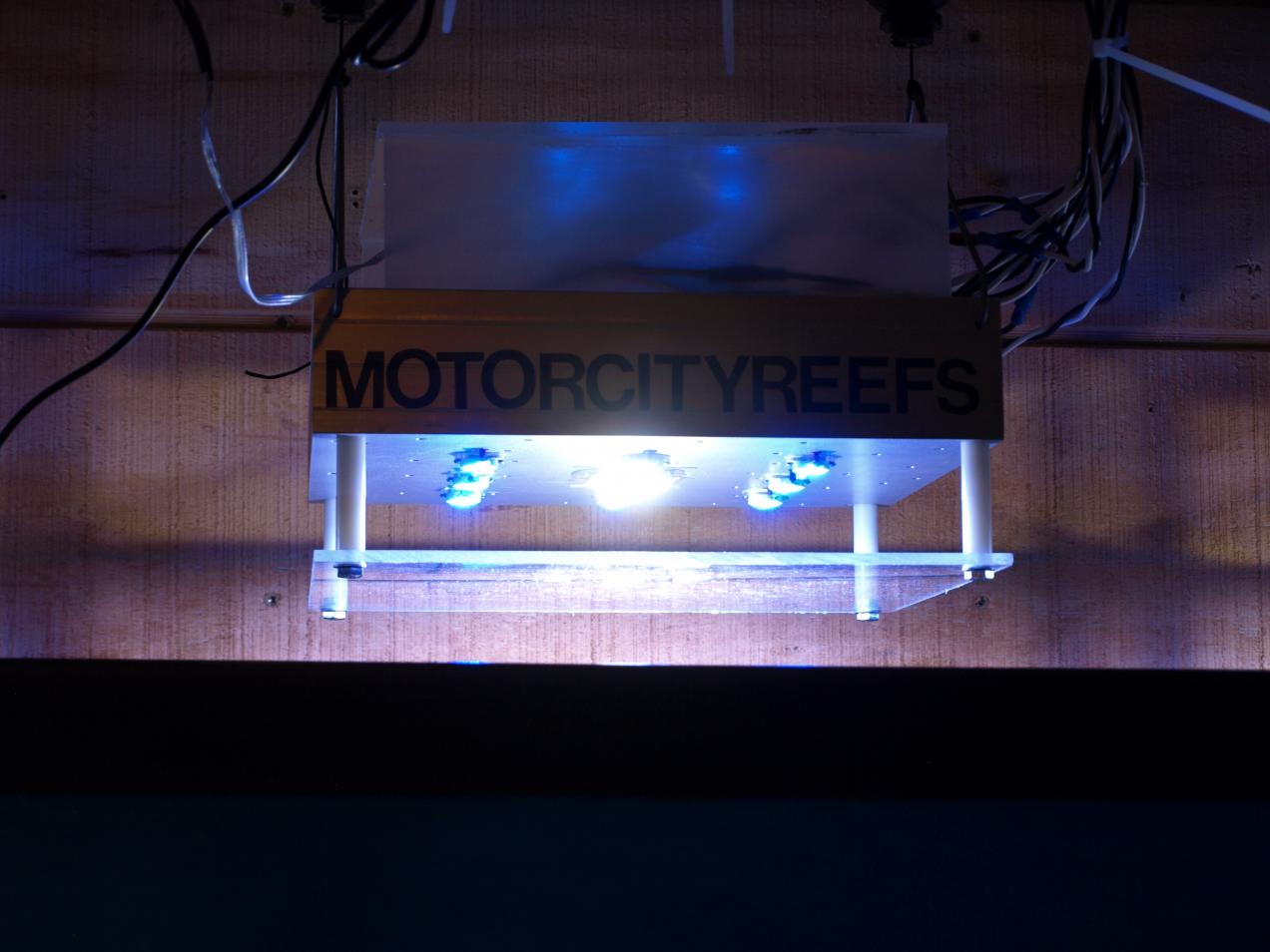

    thanks for the info here are some more pics.
    Attached Images Attached Images
    Last edited by motorcityreefs; 03-23-2011 at 02:45 PM.

  8. #8
    Heidi - Reefkeeper
    Queen of Chat

    Join Date
    Dec 2010
    Location
    Michigan
    Posts
    979
    First Name
    Heidi
    Awards Fishbowl Drawing Winner

    Default

    Hey, how much area does each of the squares there cover? And how high are you hanging them over your water?

  9. #9
    motorcityreefs - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    redford
    Posts
    46
    First Name
    brandon

    Default

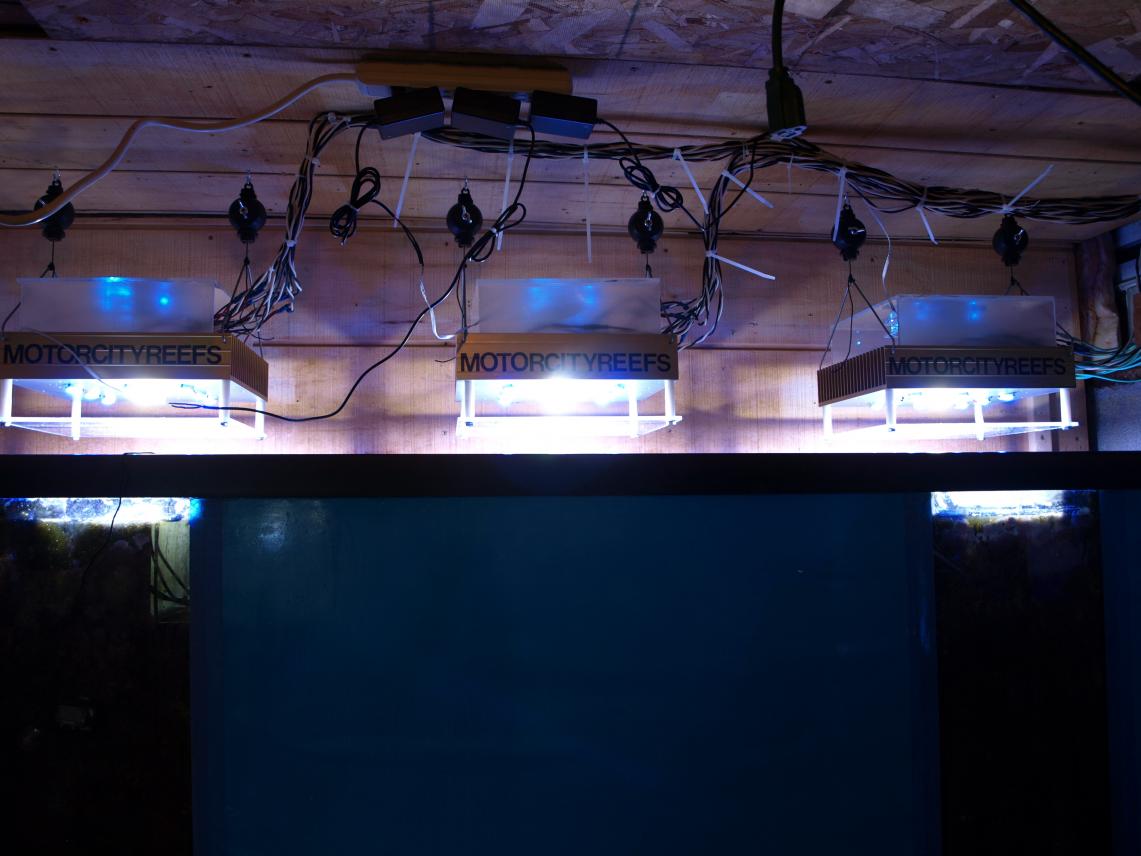

    Each pod will cover a 24" by 24" space and i am hanging them about 10" over the water.
    Attached Images Attached Images

  10. #10
    Mr. Microscope - Reefkeeper CR Member
    Join Date
    Feb 2011
    Location
    Evanson, IL
    Posts
    256
    Awards Tank of the Month - August 2012 Tank of the Month

    Default

    Looks nice! Can we see the FTS? What do you think of the color?
