LED build finally!!


Bookmark and Share
Page 1 of 2 1 2 Last
Results 1 to 10 of 11
  1. #1
    Mike - Reefkeeper CR Member
    Join Date
    Sep 2009
    Location
    Michigan
    Posts
    1,280

    Default LED build finally!!

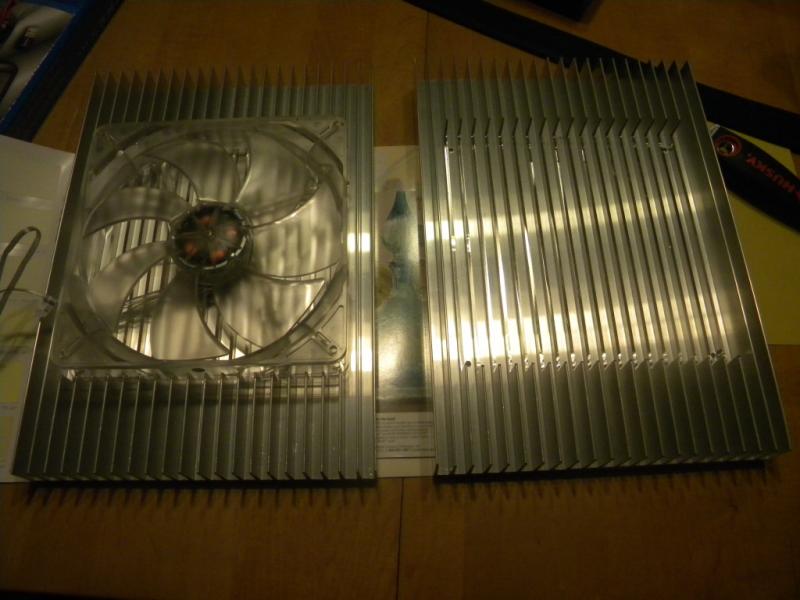

    I picked up the heat sinks today after getting them machined to accept 180mm fan. The fan is mostly recessed for aesthetic reasons. The heat sinks are also drilled and tapped for screws to secure the fans.

    Name:  DSCN3833.jpg
Views: 5693
Size:  53.8 KB
    anacroporamademepoora
    --Lifetime member of the "No Mud Club".:

  2. #2
    Sir Patrick - Reefkeeper A2 Club Coordinator
    Join Date
    Oct 2009
    Location
    UofM territory
    Posts
    7,474
    First Name
    Chris
    Awards Monthly Giveaway Winner

    Default

    Looks very nice!!!!

  3. #3
    Mike - Reefkeeper CR Member
    Join Date
    Sep 2009
    Location
    Michigan
    Posts
    1,280

    Default

    Wait until these are done Chris
    anacroporamademepoora
    --Lifetime member of the "No Mud Club".:

  4. #4
    Mike - Reefkeeper CR Member
    Join Date
    Sep 2009
    Location
    Michigan
    Posts
    1,280

    Default

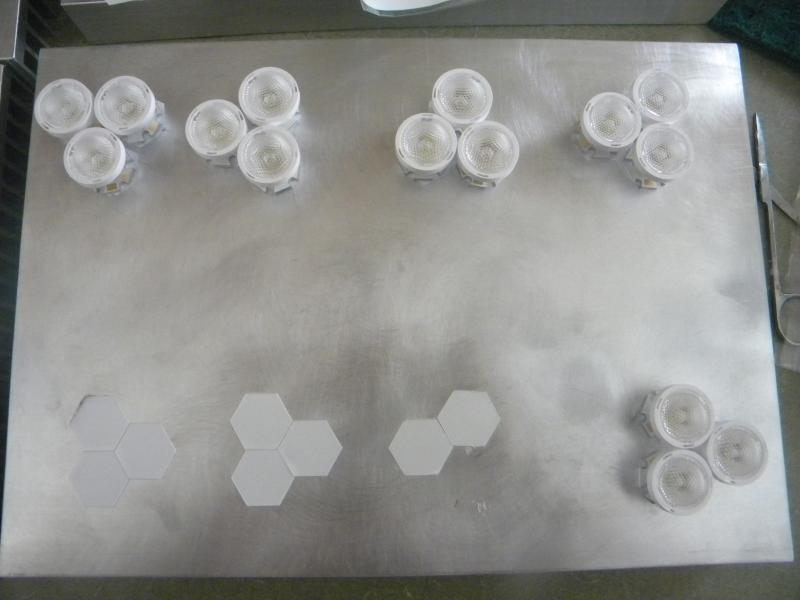

    Started configuring things. I polished the heat sinks and did a brushed aluminum look. I am using Royale Blue XRE's, Cool Blue XRE's, Neutral White and Cool Whites. The optics are wide 80 degree optics. Decided to do two pendents instead of one long fixture too.

    Name:  DSCN3864.jpg
Views: 72
Size:  38.0 KB
    anacroporamademepoora
    --Lifetime member of the "No Mud Club".:

  5. #5
    larryandlaura - Reefkeeper
    Team CR

    Join Date
    Nov 2010
    Location
    Houghton Lake
    Posts
    4,788
    First Name
    Larry
    Awards Monthly Giveaway Winner Fantasy Football Champion Referral Award Monthly Giveaway Winner

    Default

    Looking awesome Mike!
    Hi my name is Larry and I'm a coral addict!

  6. #6
    Mike - Reefkeeper CR Member
    Join Date
    Sep 2009
    Location
    Michigan
    Posts
    1,280

    Default

    I am a slow poke but it will be cool when I am done-----promise
    anacroporamademepoora
    --Lifetime member of the "No Mud Club".:

  7. #7
    larryandlaura - Reefkeeper
    Team CR

    Join Date
    Nov 2010
    Location
    Houghton Lake
    Posts
    4,788
    First Name
    Larry
    Awards Monthly Giveaway Winner Fantasy Football Champion Referral Award Monthly Giveaway Winner

    Default

    Lol hurry up! Can't wait to see the final product Mike!
    Hi my name is Larry and I'm a coral addict!

  8. #8
    Mike - Reefkeeper CR Member
    Join Date
    Sep 2009
    Location
    Michigan
    Posts
    1,280

    Default

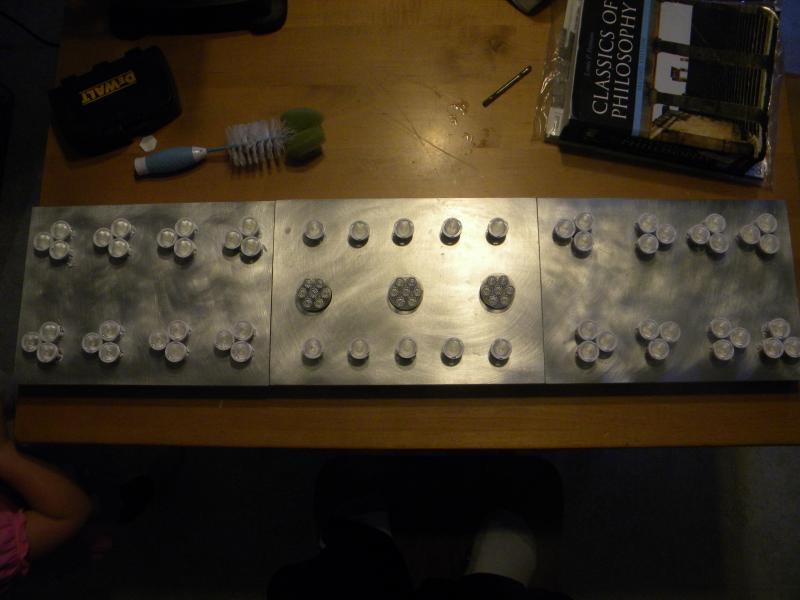

    Since I am planning on a mixed LPS reef I kinda reduced the number of LED's. I have 79 Leds in 9 pendents instad of 96 in four and I am using wider optics now. I have a 60/80 degree mix. The 7 Up's are 40 degree optics but are going over the middles of the tank where the rock work is very low.

    Name:  DSCN3883.jpg
Views: 64
Size:  43.3 KB
    anacroporamademepoora
    --Lifetime member of the "No Mud Club".:

  9. #9
    larryandlaura - Reefkeeper
    Team CR

    Join Date
    Nov 2010
    Location
    Houghton Lake
    Posts
    4,788
    First Name
    Larry
    Awards Monthly Giveaway Winner Fantasy Football Champion Referral Award Monthly Giveaway Winner

    Default

    Sweet idea Mike!
    Hi my name is Larry and I'm a coral addict!

  10. #10
    Mike - Reefkeeper CR Member
    Join Date
    Sep 2009
    Location
    Michigan
    Posts
    1,280

    Default

    Thanks,

    I ordered a dimmable driver that will power the middle all by itself. It is basically like teh Thompson Research one that is dimmable but unlike the TRC this one is actually available now. I am going to build the frame and then do the wiring once that driver arrives.
    anacroporamademepoora
    --Lifetime member of the "No Mud Club".:
