100 cube and 65 frag tank setup


Bookmark and Share
Results 1 to 9 of 9
  1. #1
    rosebud161616 - Reefkeeper
    Team CR

    Join Date
    Oct 2010
    Location
    Columbus, OH
    Posts
    389
    First Name
    Erika
    Awards Nano Contest Winner

    Default 100 cube and 65 frag tank setup

    I guess it's about time that I get a build thread started on this. We previously had a 120 (60x18x26) setup in our dining room for the last couple of years. We had an area of the sump to hold frags, however it was in our fuge and a constant hassle to keep the frags free of algea. In addition to this, we had a 37 column setup in our living room as a SPS tank, and the 15 gallon nano that we recently built for the nano contest.

    In the end it was just too many tanks, and increasingly difficult to keep up with the alk/calc demands in the tanks with 2 part. So... the solution. We decided to break down the 120, and in its place put a 100 gallon cube (30x30x24) and a 65 gallon frag tank (360x24x16). These are to be plumbed in line with a 75 gallon sump and a calcium reactor will help us to automate the alk/calc demands. When all is said and done, we will only have this setup and the nano setup left to take care of.

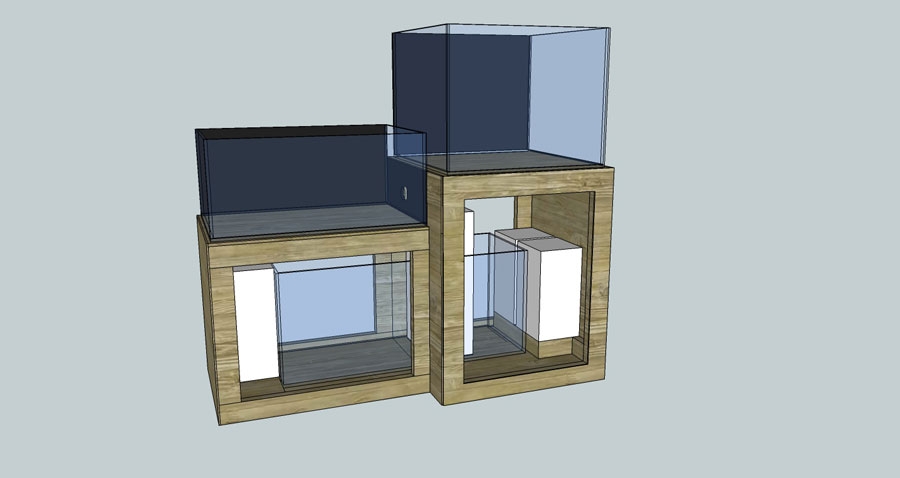

    Here are some Google Sketchup drawings I made of the setup:

    CAD1 - 100 cube and 65 frag tank setup

    The idea here was to make 2 separate stands, that are open on the inside, so that we can have a sump that goes the length of both tanks. The 100 cube will drain into the 65, and the 65 will drain into the sump. The hole on the right side of the 65 is where the 100 cube drains into it. All of the plumbling will be hidden below the 100 so this bulkhead will be the only sign of these tanks being attached to each other.

    CAD2 - 100 cube and 65 frag tank setup

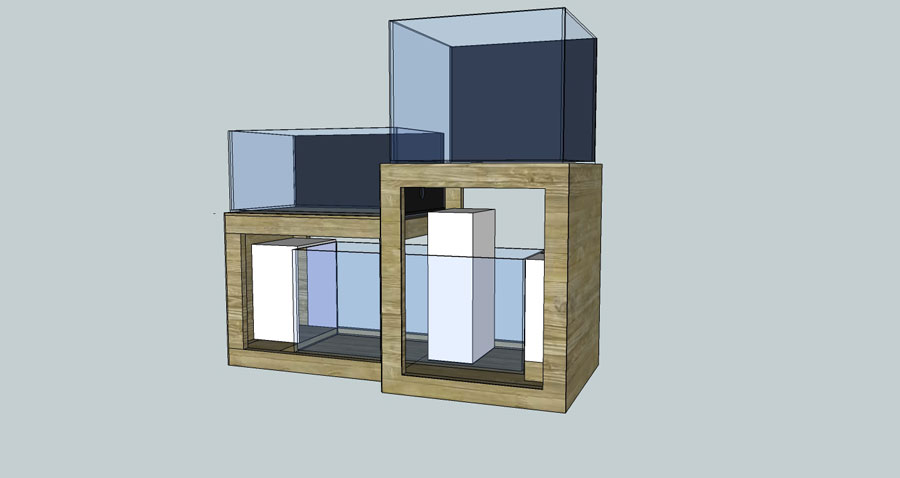

    The white box on the left is to represent the trashcan that we use for an autotop off. The white box in the middle is to represent our skimmer. The white boxes on the right represent the calcium reactor and the CO2 container.

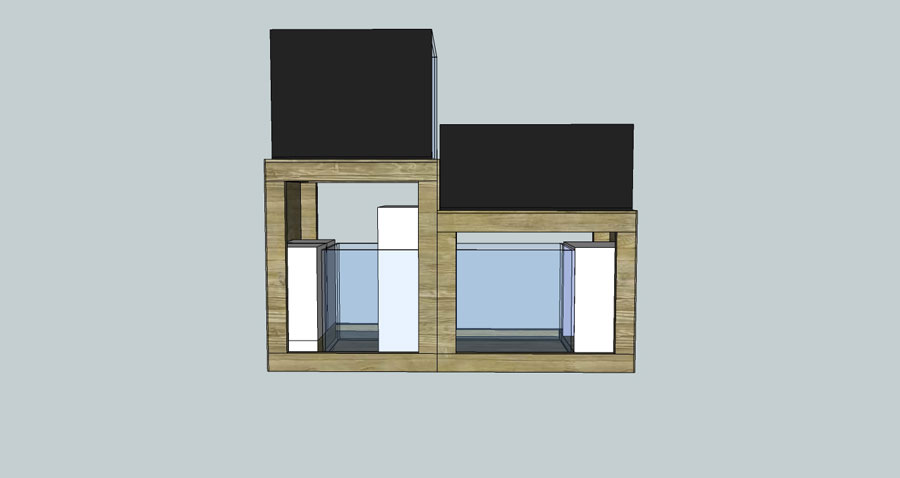

    This is the backside to show how the 2 separate stands come together:

    CAD3 - 100 cube and 65 frag tank setup

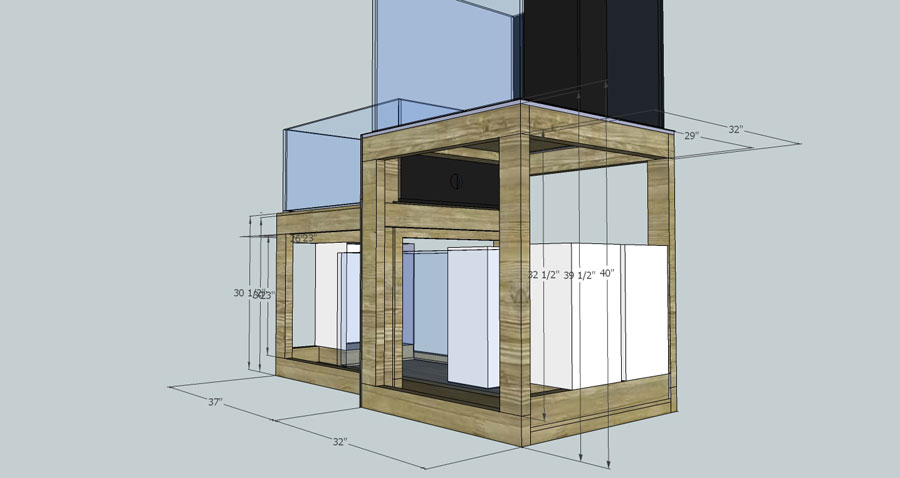

    And this is a 2x4 only view:

    CAD4 - 100 cube and 65 frag tank setup
    Last edited by rosebud161616; 08-11-2011 at 01:31 PM.

  2. #2
    rosebud161616 - Reefkeeper
    Team CR

    Join Date
    Oct 2010
    Location
    Columbus, OH
    Posts
    389
    First Name
    Erika
    Awards Nano Contest Winner

    Default

    Next was time to figure out who our tank builder was. We got quotes from GlassCages, Miracles, and Great Lakes. Great Lakes was impossible to deal with, their information on their website was conflicting, and they just didn't seem to want to help. So they were out. Miracles was quite a bit more expensive, and we have only had good experience with GlassCages, so we went the GC route.

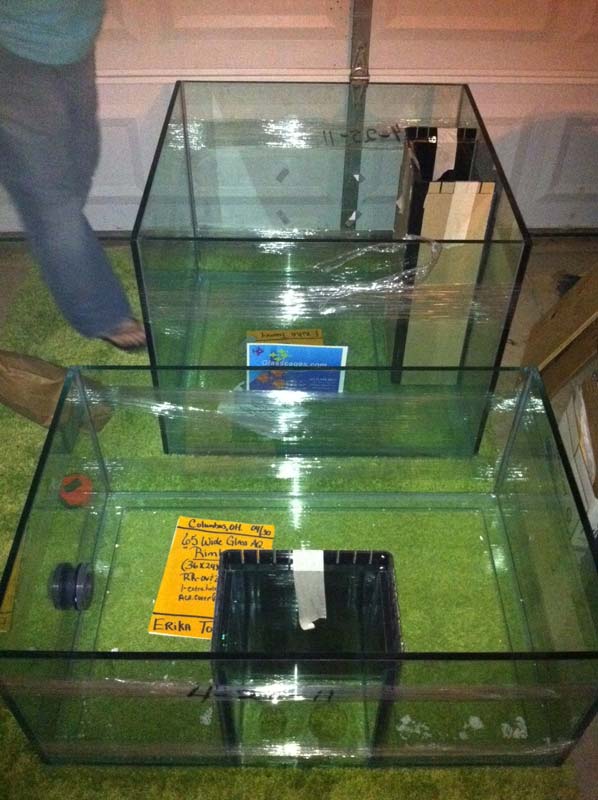

    Here they are waiting in our garage:

    New Tanks - 100 cube and 65 frag tank setup

    The only thing that I dislike is that they don't use the acrylic overflow as the overflow, but instead as a cover over the glass overflow. The glass overflow is made with 1/2" glass like the rest of the tank, so it really takes a up a lot of room. I could have saved a lot of real estate if they had just siliconed in the overflow.

    They also use 1/2" glass around the bottom to build a frame as well. I didn't know that they did that so that was a surprise to us, but not a huge deal.

    ---------- Post added at 01:14 PM ---------- Previous post was at 01:12 PM ----------

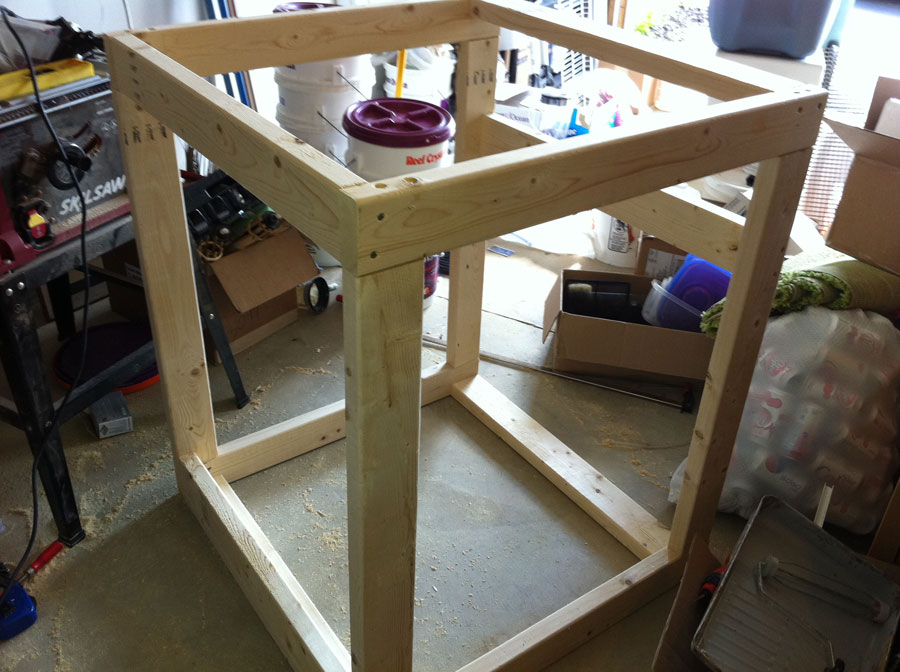

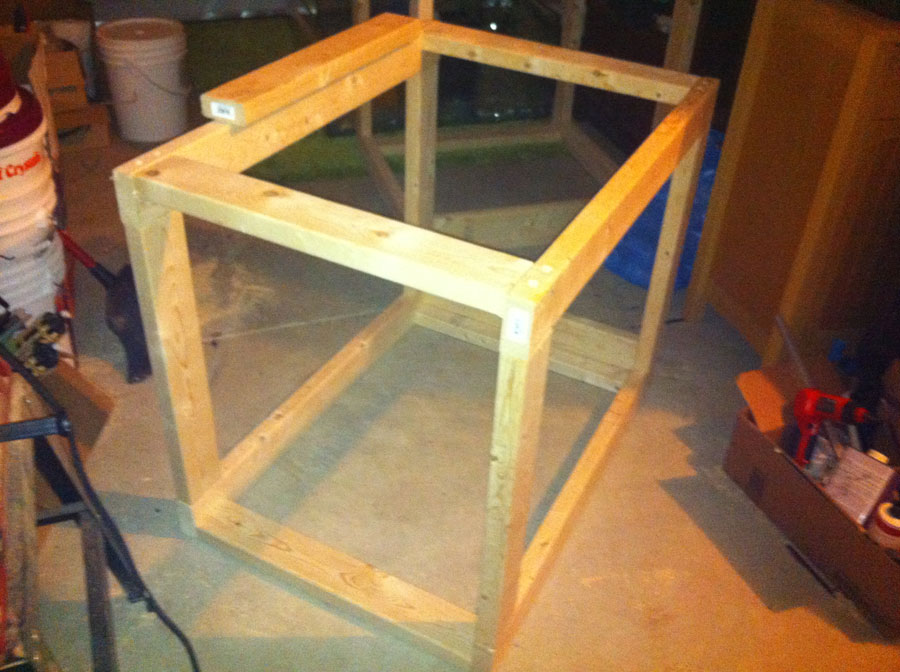

    Next it was time to build the stand. I didn't take a ton of pictures of the process, but here is a shot when they were just a basic 2x4 frame. Ignore the very messing garage.

    Stand 01 - 100 cube and 65 frag tank setup
    Stand 02 - 100 cube and 65 frag tank setup

  3. #3
    rosebud161616 - Reefkeeper
    Team CR

    Join Date
    Oct 2010
    Location
    Columbus, OH
    Posts
    389
    First Name
    Erika
    Awards Nano Contest Winner

    Default

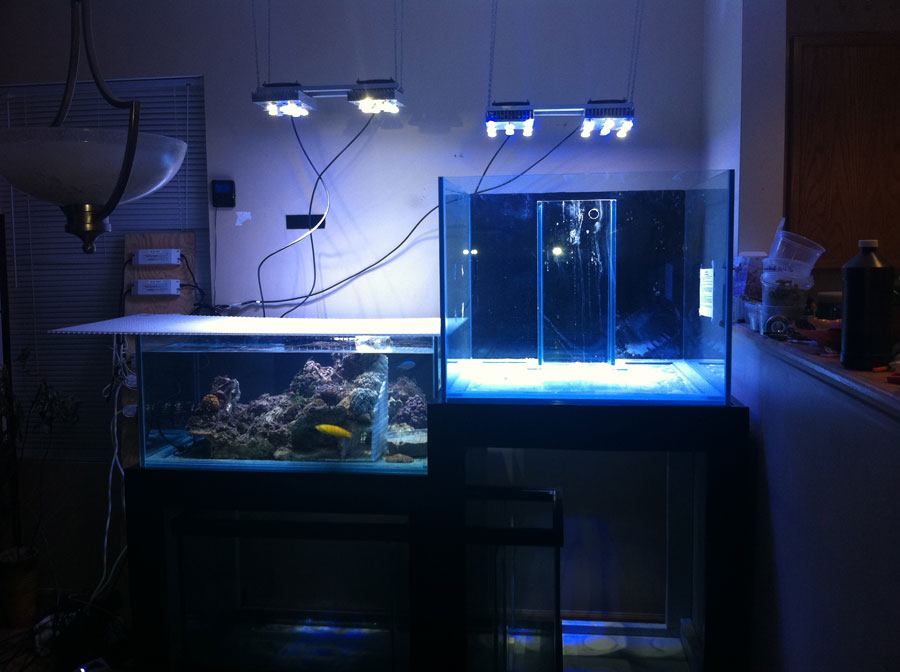

    We got the stands built, skinned, stained, and ready to go. We got the 120 broken down, the fish temporarily housed in buckets, and moved the new tanks in its place. We have some rock from the 120 in the 65 gallon with the fish while we cycle the cube and sump. Eventually we'll change the plumbing back over so that the cube drains into the 65.

    The lights are left over from the 120. These won't be sticking around.

    Setup 02 - 100 cube and 65 frag tank setup

  4. #4
    rosebud161616 - Reefkeeper
    Team CR

    Join Date
    Oct 2010
    Location
    Columbus, OH
    Posts
    389
    First Name
    Erika
    Awards Nano Contest Winner

    Default

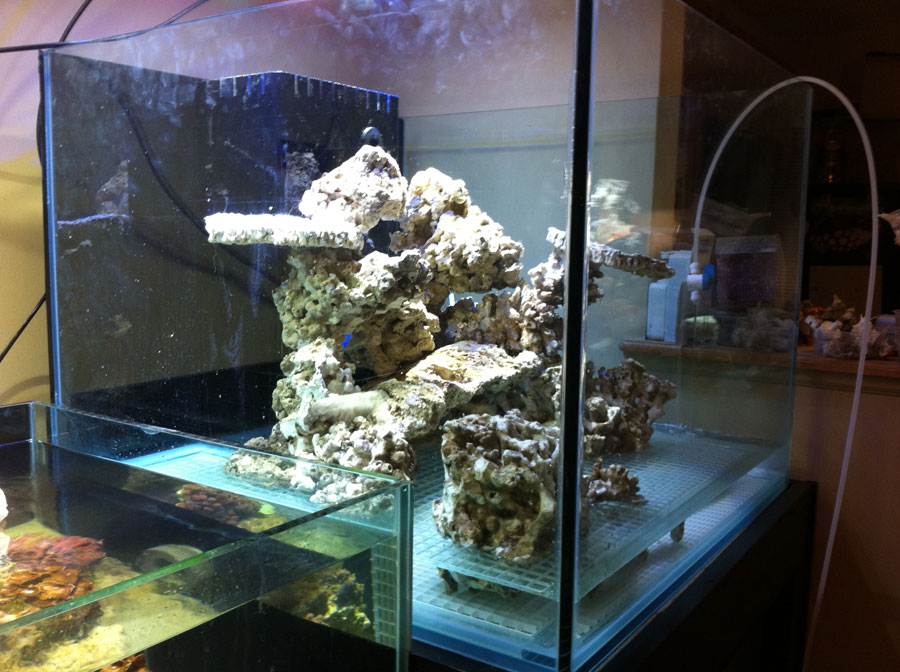

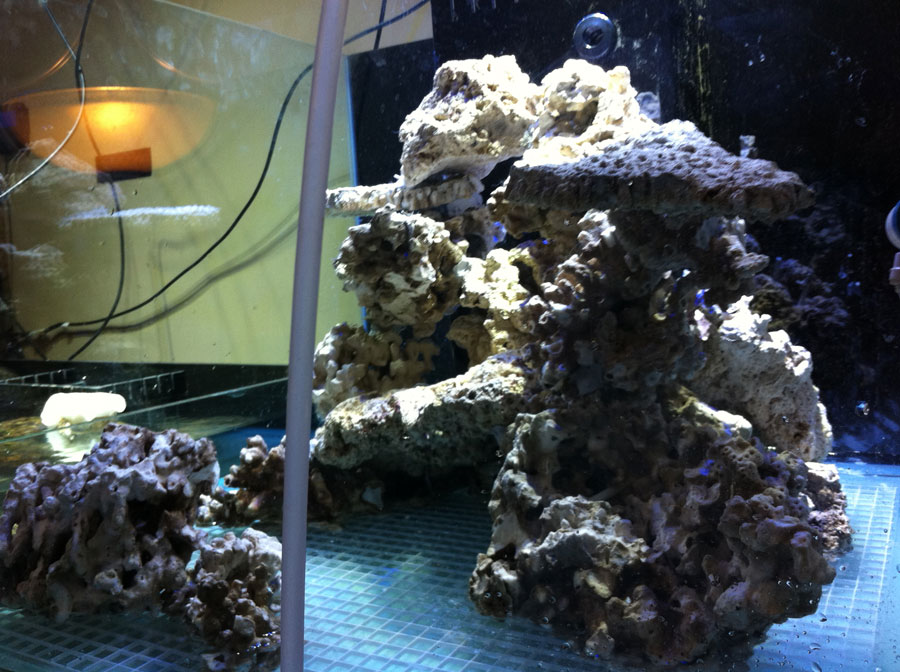

    Next we got to work on the rockwork. Here are some pics of that:

    Rockwork 01 - 100 cube and 65 frag tank setup
    Rockwork 02 - 100 cube and 65 frag tank setup
    Rockwork 03 - 100 cube and 65 frag tank setup
    Rockwork 04 - 100 cube and 65 frag tank setup

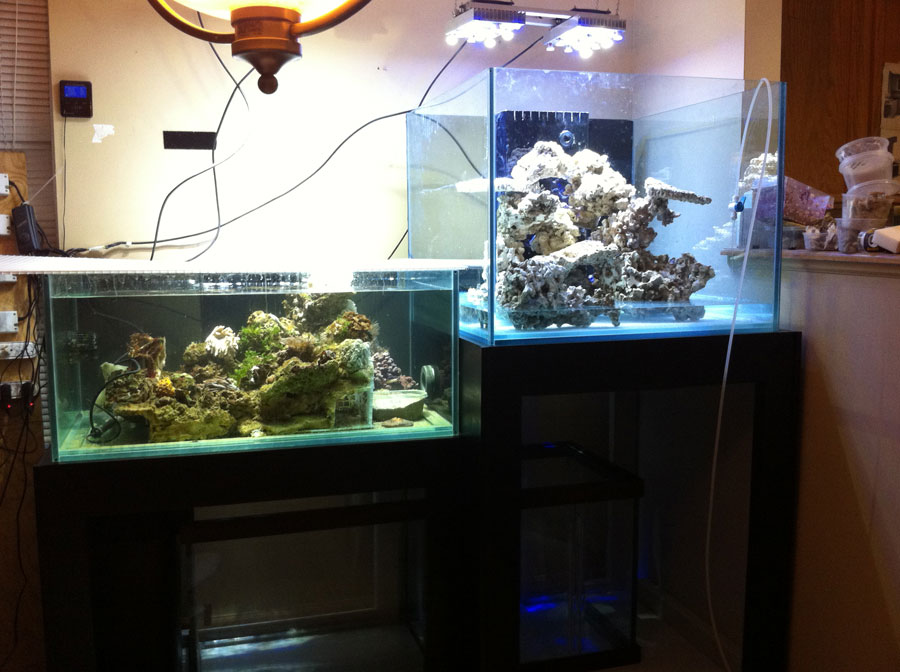

    Setup 01 - 100 cube and 65 frag tank setup

    We added sand shortly after and our tank looked like the Jersey shore for a good week. I'll have to get a new pic with sand.

    The tank is now filled and cycling. Ammonia is reading close to 0, but Nitrites are at 1ppm. We're getting there, but not there yet.

  5. #5
    larryandlaura - Reefkeeper
    Team CR

    Join Date
    Nov 2010
    Location
    Houghton Lake
    Posts
    4,788
    First Name
    Larry
    Awards Monthly Giveaway Winner Fantasy Football Champion Referral Award Monthly Giveaway Winner

    Default

    Wow kick butt setup! I can't wait to see this up and running!
    Hi my name is Larry and I'm a coral addict!

  6. #6
    creefer - Reefkeeper CR Member
    Join Date
    Feb 2010
    Location
    48116
    Posts
    786
    First Name
    Chris

    Default

    Nice work. Looking forward to following this.

  7. #7
    Nano-Newb1983 - Reefkeeper CR Member
    Join Date
    May 2011
    Location
    Saginaw, Mi
    Posts
    238
    First Name
    Mark

    Default

    wow very nice set up.. i cant wait to see it grow

  8. #8
    MizTanks - Reefkeeper
    Join Date
    Oct 2009
    Location
    U.P. of Michigan.
    Posts
    7,561
    First Name
    Jamie
    Awards Photo of the Month - October 2012 Photo of the Month Post and Reply Award - Winner of the first PAR Contest. Monthly Giveaway Winner

    Default

    Way to go Erika!! Definitely one of the best builds I've seen-
    There's nothing like being a Reefer! www.upmmas.com

  9. #9
    Scout - Reefkeeper CR Member
    Join Date
    Aug 2011
    Location
    Saginaw, MI
    Posts
    14

    Default

    This looks great. I really like the way the one flows to the next and using one sump for the two tanks. Way cool setup.
